Electrical Stand

KEY FEATURES

 Adjustable height & width

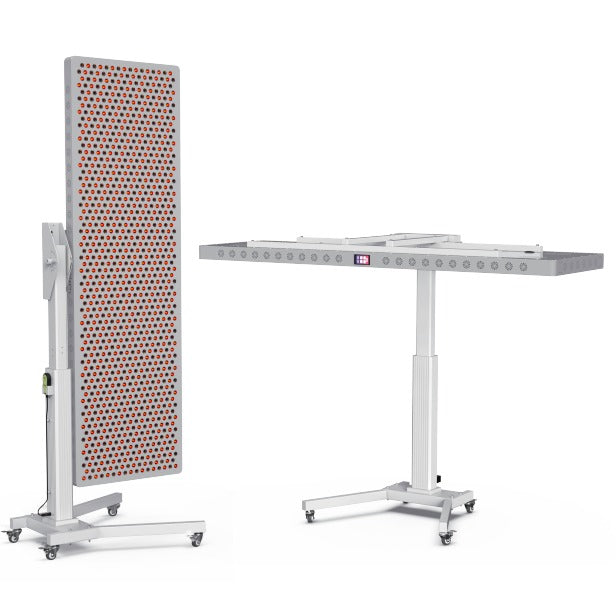

 Vertical & horizontal installation methods
 Weight: 67.4lb
 Removable
 All-metal construction
 Locking wheels
 Only suitable for Lightpath Titan
 Maximum load capacity: 100 Ibs / 45.5 kg
 Height is adjustable from 47inches to 56.

STEP 1: BASE PART INSTALLATION

Install the left and right bracket rods into the base.
Use 4 M8*65mm +4 flat screws inserts to lock the whole parts down

STEP 2: WHEELS INSTALLATION

Press the anti-rotation lock of the universal wheel and install the four wheels on the base

STEP 3: LIFTING COLUMNS INSTALLTION

Put the cover on the base
Put the Lifting Columns on the base

Move the cover upwards, and use 4 M8x16mm screws and 4 flat screws to tighten the front and rear screws of the lifting column.

Put the cover in original postion

Use 2pcs M8x16mm screws and 2pcs flat screws lock the base

STEP 4: SUPPORT ROD INSTALLATION

Put one support rod into the hole, then use 4M8X16mm screws and flat screws lock it.

Rotate 180° and use 4pcs M8x16mm screws and flat screws to assemble the other support rod

STEP 5: KEEP THE SUPPORT ROD HORIZONTAL

Keep the Support rod horizontal and use M8x16mm screws lock here

06

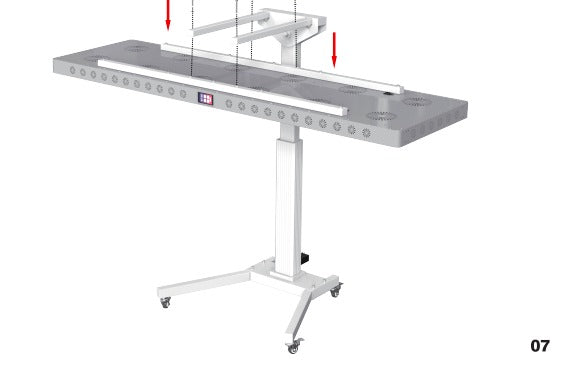

STEP 6: PANEL AND STAND INSTALLATION

Keep the panel flat, use M8X50mm screws and flat screws to align the holes and lock the support rod with the panel.

Need two people lift the assembled panel, and another people locks it with 4 M8x50mm screws and flat screws

(Ps:The panel is extremely heavy,need 3 people to help here to install to insure the safety )

STEP 7: INSTALL THE POWER SUPPLY AND CONTROLLER IN RIGHT POSTION

Align the controller interface, tighten it clockwise, and put the cable into the two cable buckles

Powering on after the power cord is plugged into the socket and starting use it now.
